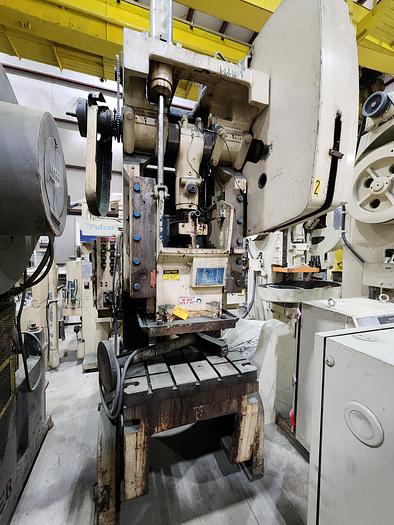

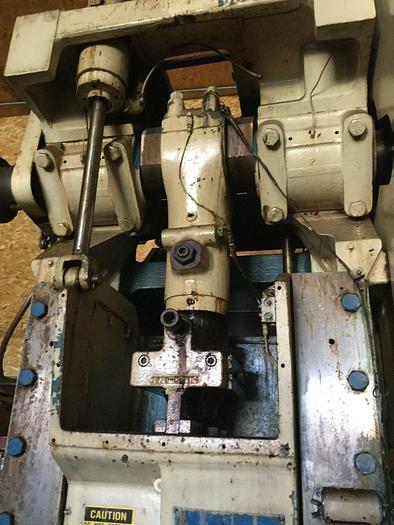

1976 BLISS C-75

1976 BLISS C-75
Contact us for price
Description
The 1976 BLISS C-75 is a used 75-ton gap frame press, ideal for a range of industrial applications. This model is equipped with air counterbalance cylinders which help to stabilize operation. Its stroke measures 4 inches, with the machine capable of up to 90 strokes per minute, making it efficient for high-volume tasks. The press offers a slide area of 24 inches left-to-right by 18 inches front-to-back, while the bed area measures 36 inches left-to-right by 24 inches front-to-back. The shut height on the bed is 15 inches, with a slide adjustment capability of 3.5 inches, allowing for flexibility in various operational settings. It is powered by a 7.5 HP motor, designed to run on 230 V, three-phase, 60 Hz electrical supply. The lubrication system is automatic and air actuated, ensuring smooth operation and maintenance. Weighing approximately 21,000 lbs, the BLISS C-75 press is a robust and reliable piece of equipment for industrial use.
Specifications
Manufacturer | BLISS |
Model | C-75 |
Year | 1976 |
Condition | Used |
Serial Number | H-67451 |
Stock Number | 4225 |
Conditon | Used |
Capacity | 75 TON |
Distance above bottom | .0625" |
Stroke | 4" |
Strokes per minute | 90 |
Shut height on bed, sdau | 15" |
Slide area | 24" LR x 18" FB |
Bed area | 36" LR x 24" FB |
Slide adjustment | 3 1/2" |
Main motor | 7 1/2 HP |
Electrics | 230 V/3 PH/ 60 HZ |
Lubrication system | AUTOMATIC AIR ACTUATED |
Approximate overall weight | 21,000 LBS |
