2002 AIDA NSU-S2-3000
Sold
2002 AIDA NSU-S2-3000
Description

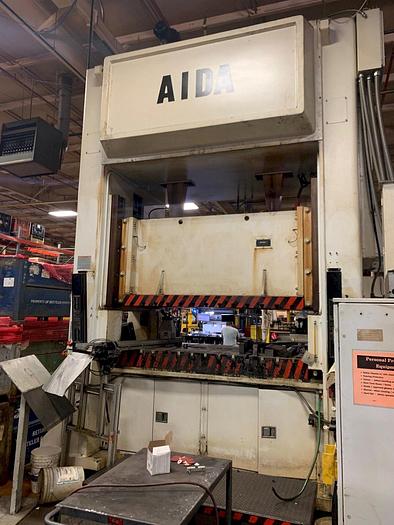

AIDA MODEL NSU-S2-3000 CRANK MOTION 2-POINT PRESS
Specifications
| Manufacturer | AIDA |
| Model | NSU-S2-3000 |
| Year | 2002 |
| Condition | Used |
| Serial Number | A7003-1001 |
| Stock Number | 4479 |
| Conditon | Used |
| Capacity | 330 US TON |
| Rated tonnage point | 0.25" |
| Continuous working energy | 101.7 in-US TON @ 40 SPM |
| Length of stroke | 10" |
| Stroke per minute (no load) | 40-80 |
| Die height over bolster | 24" |
| Slide adjustment | 6" |
| Slide & bolster area | 84" LR x 48" FB |
| Bolster thickness | 7.63" |
| Bolster to floor | 55.1" |
| Maximum upper die weight | 9300 LB @ 100 PSI |
| Main motor capacity | 50 HP |
| Required air pressure | 73 PSI |
| Total weight | 44 US TON |
