1966 MINSTER P2-150-48
Sold
1966 MINSTER P2-150-48
$59,500 (USD)
Description

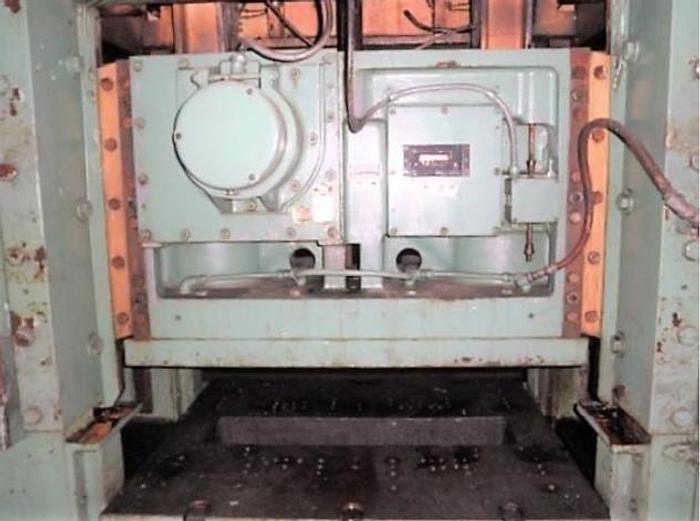

150 TON MINSTER PIECEMAKER STRAIGHT SIDE DOUBLE CRANK PRESS
EQUIPPED WITH:
MINSTER AIR CLUTCH & BRAKE
(2) AIR COUNTERBALANCES
AUTO RECIRCULATING LUBE
VARIABLE SPEED DRIVE
FREE STANDING OPERATOR CONSOLE

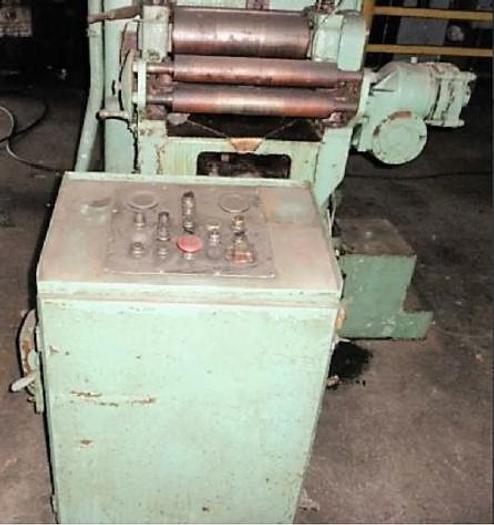

LITTELL DOUBLE ROLL FEED & SCRAP CHOPPER
Specifications
| Manufacturer | MINSTER |
| Model | P2-150-48 |
| Year | 1966 |
| Condition | Used |
| Serial Number | P2-150-17173 |
| Stock Number | 4417 |
| Conditon | Used |
| Capacity | 150 TONS |
| Length of stroke | 2" |
| Slide adjustment | 4" |
| Bed area | 48" LR x 40" FB |
| Slide area | 48" LR x 23" FB |
| Shut height | 22" (SDAU OVER BED) |
| Windows | 20" |
| Bolster thickness | 6" |
| Strokes per minute | 100-200 |
| Distance bed to floor | 40" |
| Main motor | 20 HP |
| Approx dimensions | 117" LR x 74" FB x 157" H |
| Approx weight | 50,400 LBS |
