2014 PRESS NEVER PUT IN PRODUCTION AIDA NC2-2500(2)
Sold
2014 PRESS NEVER PUT IN PRODUCTION AIDA NC2-2500(2)
$167,940 (USD)
Description

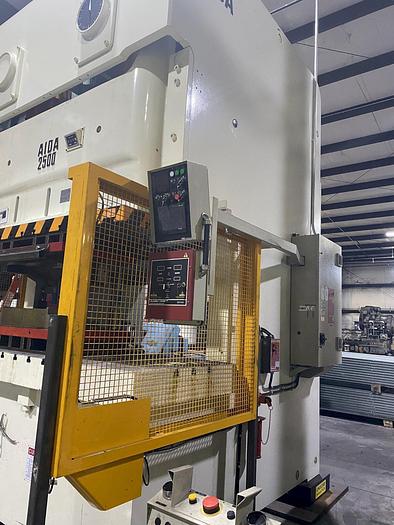

AIDA MODEL NC2-2500(2) PRESS
WET TYPE CLUTCH
HYDRAULIC OVERLOAD
LIGHT CURTAINS

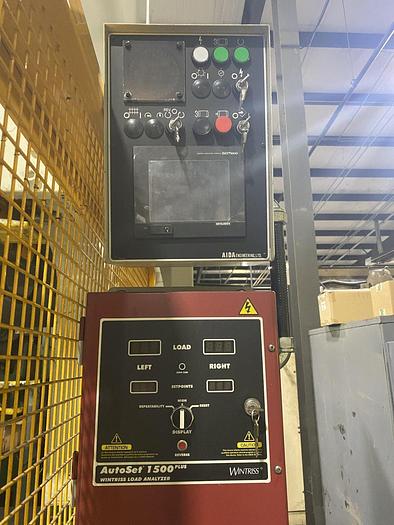

WINTRISS AUTO SET
Specifications
| Manufacturer | AIDA |
| Model | NC2-2500(2) |
| Condition | Used |
| Stock Number | 4401 |
| Conditon | Used |
| U.s. tons | 275 |
| Strokes per minute | 20-40 |
| Die height, bolster to slide | 21.6" |
| Slide adjustment | 4.72" |

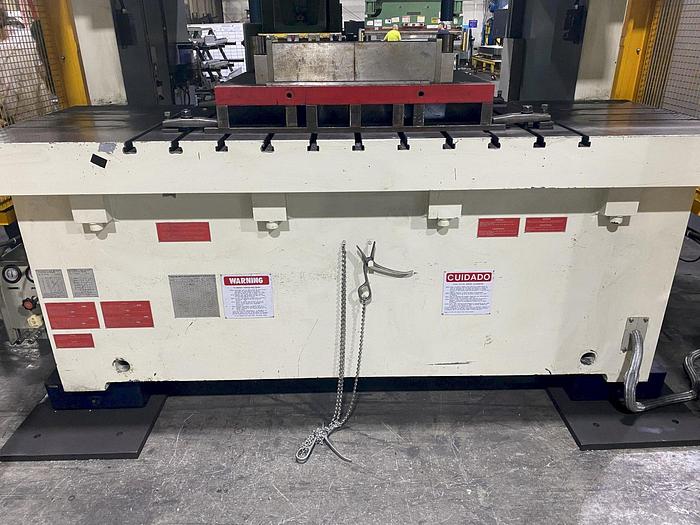

| Bolster area | 106.3" LR x 36.2" FB |
| Slide area | 82.7" LR x 27.6" FB |
