1997 AIDA PMX-L2-200(1)-155-83
Sold
1997 AIDA PMX-L2-200(1)-155-83
$249,900 (USD)
Description

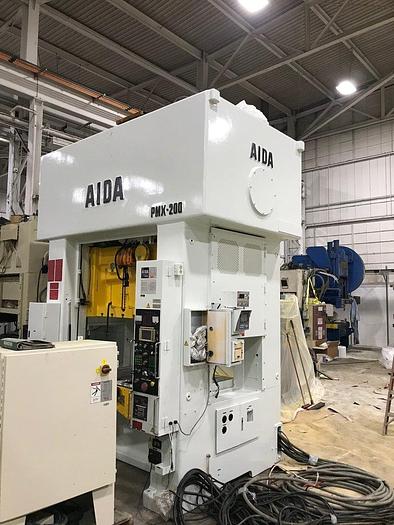

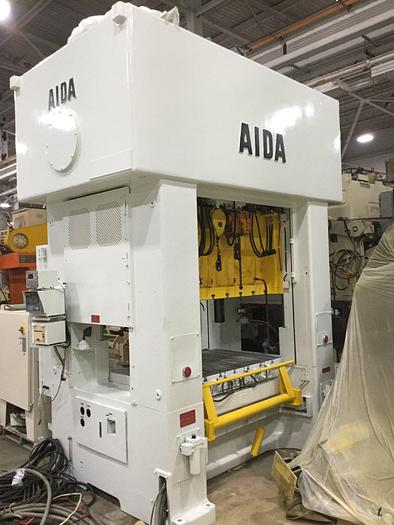

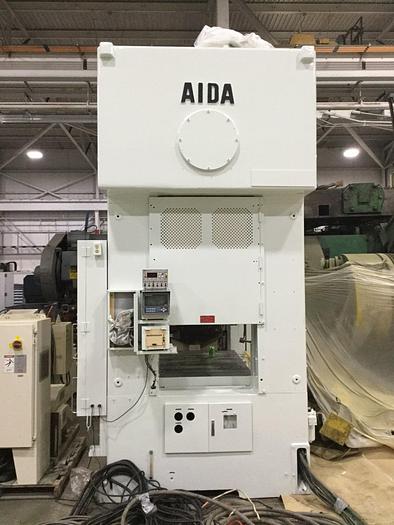

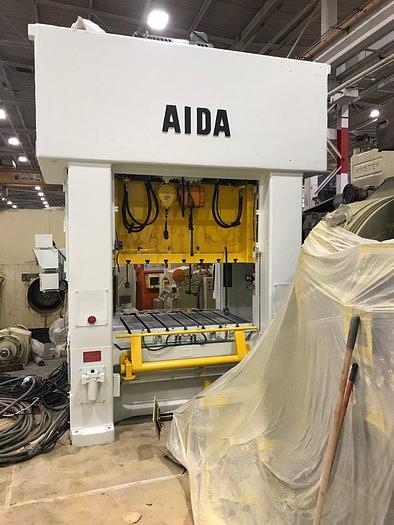

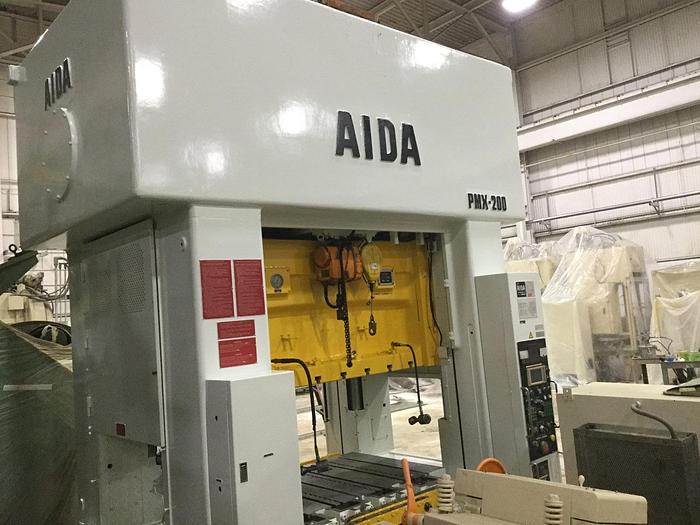

220 TON AIDA PMX-200 STRAIGHT SIDE DOUBLE CRANK PRESS
WINDOWS
30 HP MAIN MOTOR
FLUSH FLOOR DESIGN
Specifications
| Manufacturer | AIDA |
| Model | PMX-L2-200(1)-155-83 |
| Year | 1997 |
| Condition | Used |
| Serial Number | 12902-0738 |
| Stock Number | 4302 |
| Conditon | Used |
| Type | CRANK-MOTION MECHANICAL |
| Capacity | 220 TON |
| Speeds | 50-120 SPM (VARIABLE) |
| Die height | 18.7" (475mm) |
| Stroke | 7.87" (200mm) |
| Slide adjustment | 3.94" (100mm) |
| Slide area | 61.02" LR x 32.68" FB (1550mm x 830mm) |
| Bolster area | 61.02" x 37.4" (1550mm x 950mm) |
| Approx overall dimensions | 120" LR x 90" FB x 170" TALL |
| Approx weight | 78,000 LBS |
