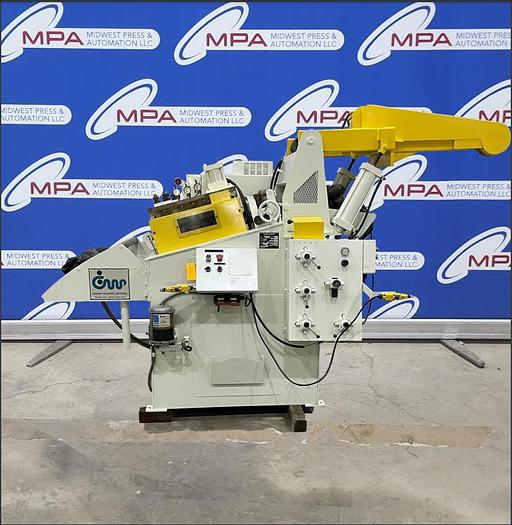

USED CWP 24" WIDE FEED LINE

FEED SPECIFICATIONS

MODEL NUMBER:

SERIAL NUMBER:

MAX MATERIAL THICKNESS: 24" STRAIGHTENER SPECIFICATIONS

MODEL NUMBER: 24C

SERIAL NUMBER: C12119-3

MAX MATERIAL WIDTH: 24"

STOCK THICKNESS RANGE (MILD STEEL): .021" - .187"

SPEED: 1200 IPM OVER ARM REEL SPECIFICATIONS

MODEL NUMBER: 4R-24

SERIAL NUMBER: C12119-5

MAX COIL WEIGHT: 6500 LBS

MAX COIL OD: 60"

MANDREL EXPANSION RANGE: 13"-17"; 17"-21"

MAX MATERIAL WIDTH: 24"

MACHINE DIRECTION: RIGHT TO LEFT

APPROXIMATE DIMENSIONS

Feeder

65" L x 62" W x 78" T

2,200 LBS

Straightener

145" L x 90" W x 90" T

4,600 LBS

Reel

82" L x 43" W x 84" T

2,300 LBS
