36" x .090" x 10,000 LB COE FEED LINE

2017 AC SERVO DRIVE DIGITAL ROLL FEED

MODEL NUMBER: CPRF-S336

SERIAL NUMBER: 73038-1

MATERIAL TYPE: PRE-STRAIGHTENED MCRS

MAX MATERIAL WIDTH: 36"

MATERIAL THICKNESS RANGES:

MCRS - 40,000 PSI Yield - Max: 0.125" thick @ 18.00" wide

MCRS - 40,000 PSI Yield - Min: 0.020" thick @ 36.00" wide

MCRS - 40,000 PSI Yield - Max: 0.090" thick @ 36.00" wide

FEED DIRECTION: LEFT TO RIGHT

PASS LINE: 49.5”

PRIMARY COLOR: MINSTER GREEN

VOLTAGE: 480

FEED ANGLE: 180-240 DEGREES

MAXIMUM SPEED: 312 FEET/MINUTE

ACCELERATION: 36 FEET/SECOND/SECOND

FEED ACCURACY: +/- .003 INCH

NUMBER OF FEED ROLLS: 2

FEED ROLL OD: 3"

FEED ROLL ID: 0 INCHES-SOLD ROLLS

FEED ROLL BODY WIDTH: 36 INCHES-FULL WIDTH

DRIVE RATIO: 2.5:1

AIR OPERATED THREADING TABLE

MODEL NUMBER: CPTT-3610

AIR RAISE AND LOWER

ADJUSTABLE PASSLINE FEATURE

SINGLE SIDED TABLE

BASED ON A 10' LOOP

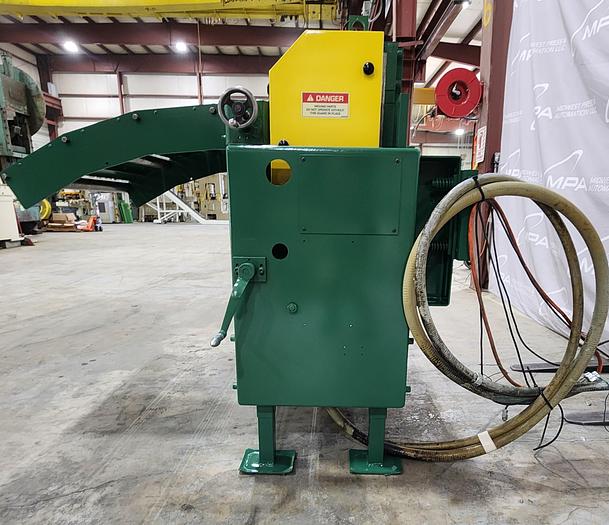

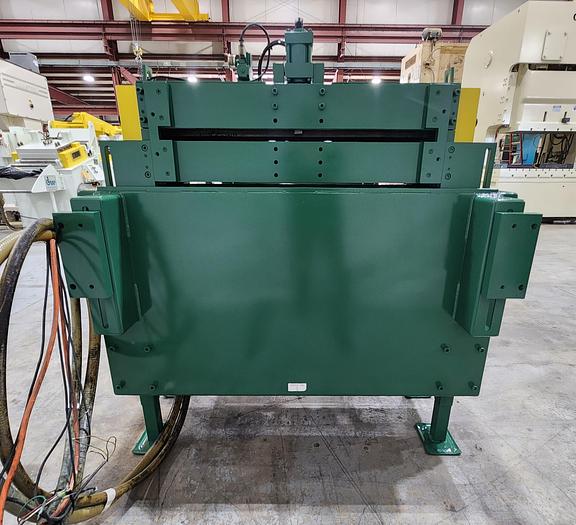

2019* FREE STANDING POWER STRAIGHTENER

*UPGRADED W/NEW HEAD AND DRIVE

MODEL NUMBER: CPPS-300-36

SERIAL NUMBER: 20305-3

7 ROLL, 3" DIAMETER DESIGN

MATERIAL THICKNESS RANGE: .010" - .187"

PAYOFF RATE: UP TO 90 FPM

1998 COIL REEL FOR PULL OFF OPERATIONS

MODEL NUMBER: CPR-PO-10036

SERIAL NUMBER: 20305-4

MAX COIL WEIGHT: 10,000 LBS

MAX COIL WIDTH: 36"

MAX COIL OD: 72"

MANDREL EXPANSION RANGE: 18"-23"
