18" PERFECTO FEED LINE

STOCK STRAIGHTENER MODEL 38-18-21

SERIAL NUMBER: S5-93058

MAX THICKNESS: .625" @ 18" (mild steel)

MAX WIDTH: 18"

MIN THICKNESS: .035"

MATERIAL: MILD STEEL

FLATNESS: .004" T.I.R. ON 18" SQUARE

LINE DIRECTION: LEFT TO RIGHT

LINE SPEED: 5-30 FT/MIN

PASS LINE HEIGHT: 60" ABOVE FLOOR

460 VAC 3PH 60HZ

STRAIGHTENING ROLLS:

21 STRAIGHTENING ROLLS, 18.5" FACE x 3.81" DIA. ON 4" CENTER

PH-18 PEELER

HOLD DOWN, FLATTENER ASSEMBLY, DOUBLE RESTRICTOR ARM

HYDRAULIC POWER SUPPLIED BY REEL PUMP

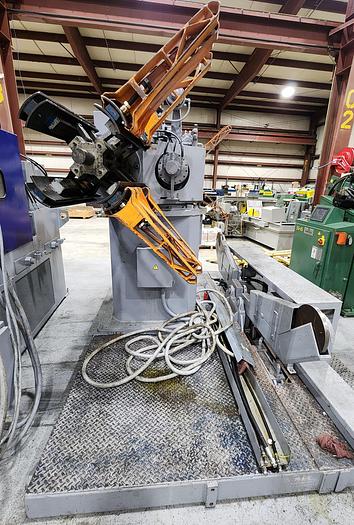

MODEL RD 8-18B DOUBLE END PULL OFF REEL

SERIAL NUMBER: RC-93057

MAX COIL WEIGHT AT MAX WIDTH: 8,000 PER SIDE

MAX COIL WIDTH: 18"

MIN COIL WIDTH: 3"

MAX COIL OD: 60"

MIN COIL OD: 36"

MAX LINE SPEED: 30 FT/MIN

MANDREL EXPANSION: 16" - 20"

HYDRAULIC ROTATING CYLINDER

MODEL TT-1830 THREADING TABLE

WILL SUPPORT WIDTH OF 18" AND 15' LENGTH
