600 VERSON MODEL S2-600-120-60T STRAIGHT SIDE PRESS

MODEL NUMBER: S2-600-120-60T

SERIAL NUMBER: 28346

CAPACITY: 600 TON

RATING 1/2" OFF BOTTOM 20 SPM MIN SPEED

LENGTH OF STROKE: 12"

STROKES PER MINUTE: 20-40

SHUT HEIGHT, BED TO SLIDE, SDAU: 30"

BOLSTER THICKNESS 8"

SLIDE ADJUSTMENT: 10"

BOLSTER AREA: 120" LR x 60" FB

TOTAL PRESS WEIGHT 192,000 LBS

INCLUDES:

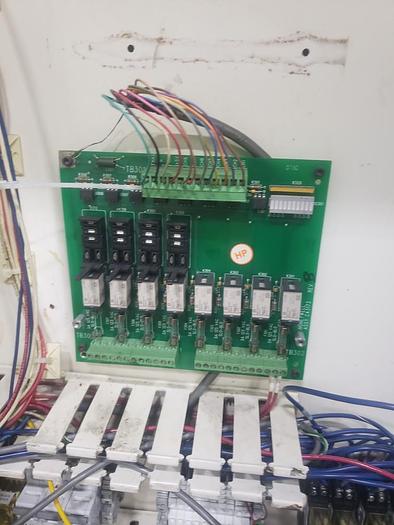

WINTRISS SMARTPAC w/WPC CLUTCH BRAKE CONTROL

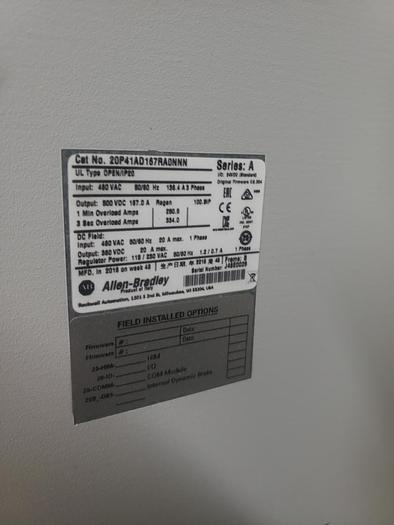

AB POWER FLEX DC DRIVE

REBUILT 100 HP MAIN MOTOR

SLIDE MOTOR 5 HP

REBUILT SLIDE (IT'S APART AND CAN BE INSPECTED LOOKS EXCELLENT)

HYDDRAULIC TIE ROD NUTS

MPA CAN PROVIDE A TURNKEY SOLUTION FOR YOUR NEEDS -AUTOMATION, FEEDLINES, TRUCKING, RIGGING AND INSTALL

2 DIE CUSHIONS 45.4 TONS EA. AT 100PSI

PRESS DISASSEMBLED AND LOCATED IN EATON RAPIDS, MI.
