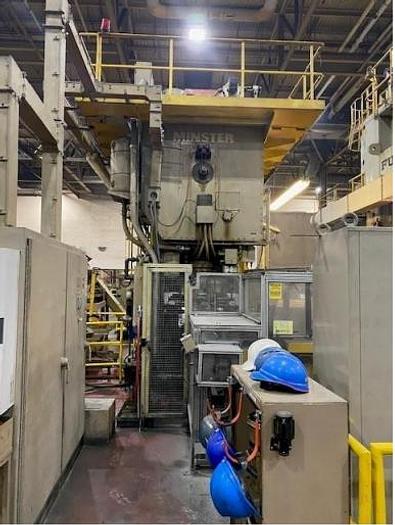

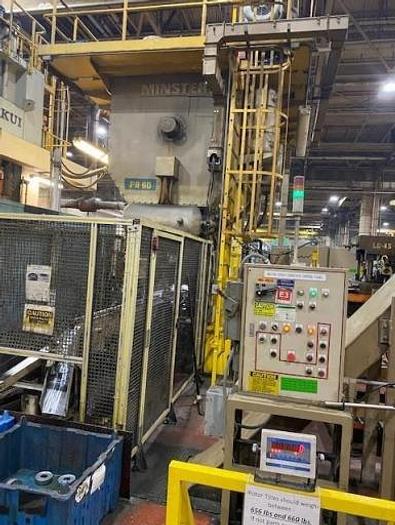

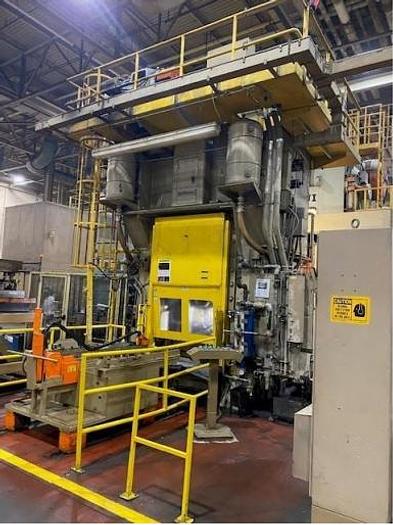

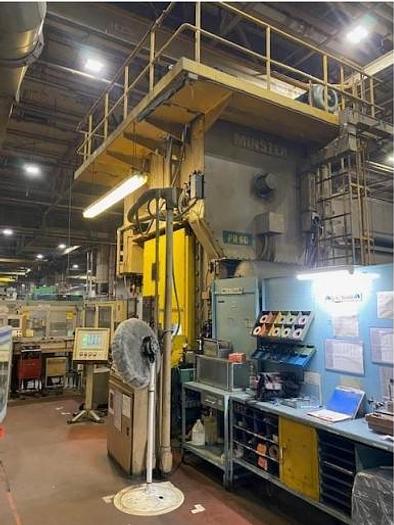

600 TON MINSTER MODEL E2-600-54-48 HEVI-STAMPING STRAIGHT SIDE PRESS

600 TON MINSTER MODEL E2-600-54-48 HEVI-STAMPING STRAIGHT SIDE PRESS

Contact us for price

orCall +1 517-731-0073

Description

MODEL NUMBER: E2-600-54-48

YEAR NEW: 1996

CAPACITY: 600 TONS

LENGTH OF STROKE: 11.81"

SHUT HEIGHT: 37"

SHUT HEIGHT OVER BOLSTER: 26"

SLIDE ADJUSTMENT: 6"

BED AREA: 54" LR x 48" FB

BOLSTER AREA: 48" LR x 48" FB x 11" THK

STROKES PER MINUTE: 0-40

MAIN MOTOR: 75 HP


EQUIPPED WITH:

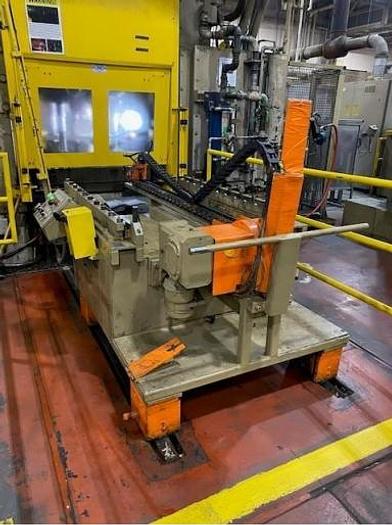

POWERED DIE CHANGING DEVICE

11" THICK BOLSTER PLATE

WAYNE TRAIL TRANFER SYSTEM

AIR CLUTCH & BRAKE

PAX LUBRICATION SYSTEM

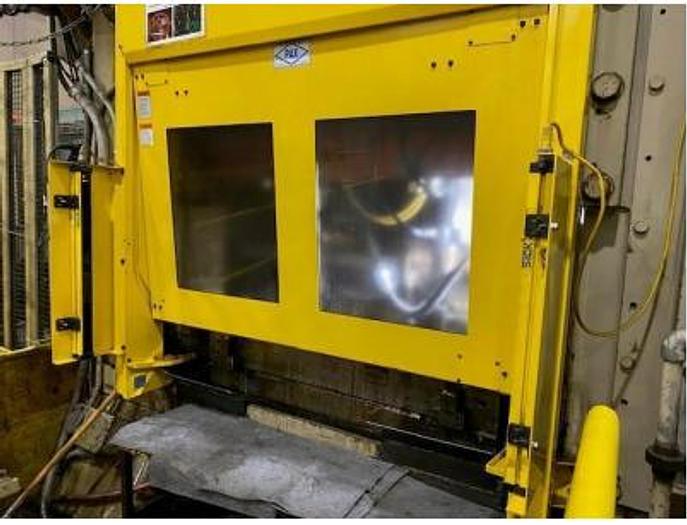

PAX SAFETY GUARDS

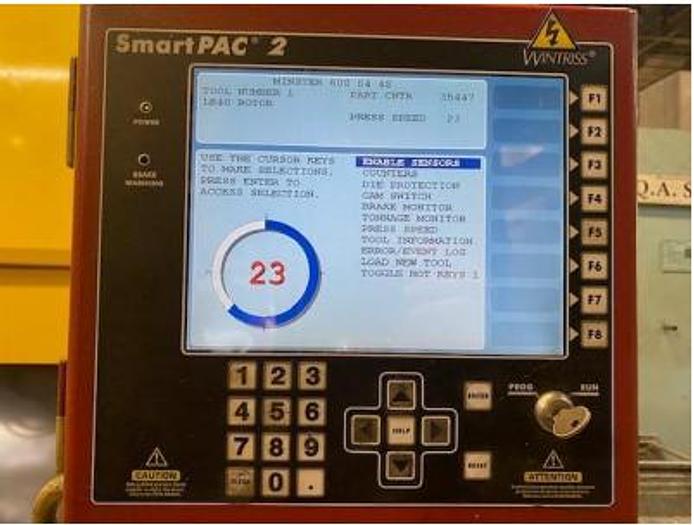

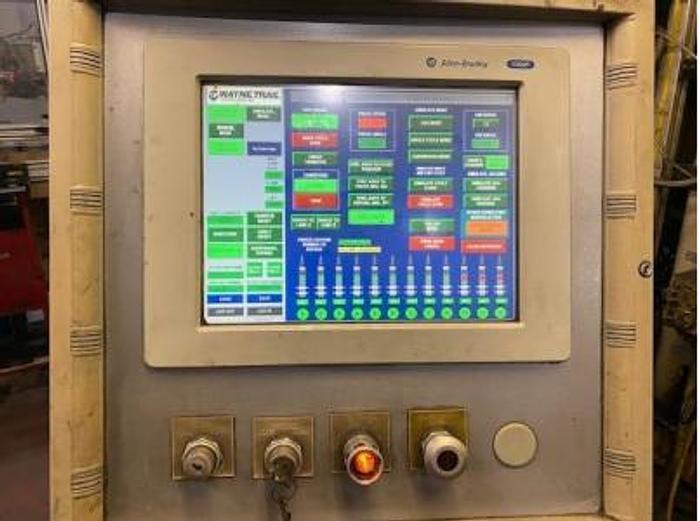

WINTRISS SMARTPAC 2, TOUCHSCREEN PLC CONTROL

MONITORFLOW LUBRICATION SYSTEM

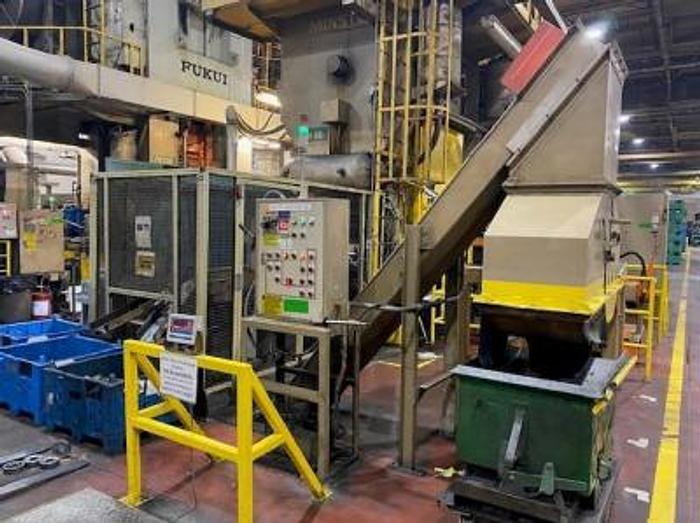

SCRAP CONVEYOR SYSTEM

VIBRO DYNAMICS ISOLATING PADS

LIGHT CURTAINS


Specifications

ManufacturerMINSTER
ModelE2-600-54-48
Year1996
ConditionUsed
Stock Number5065
