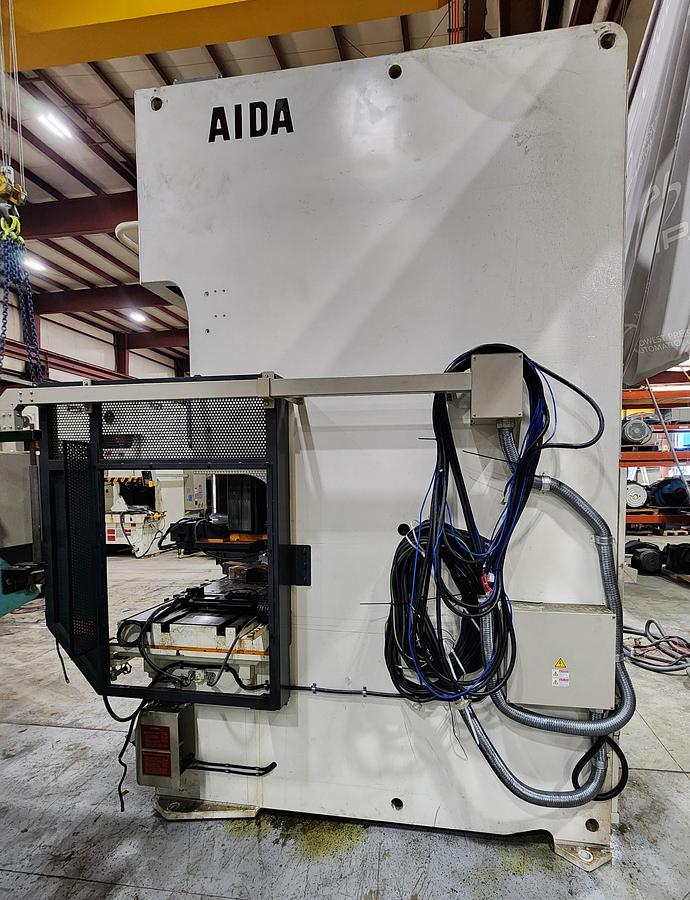

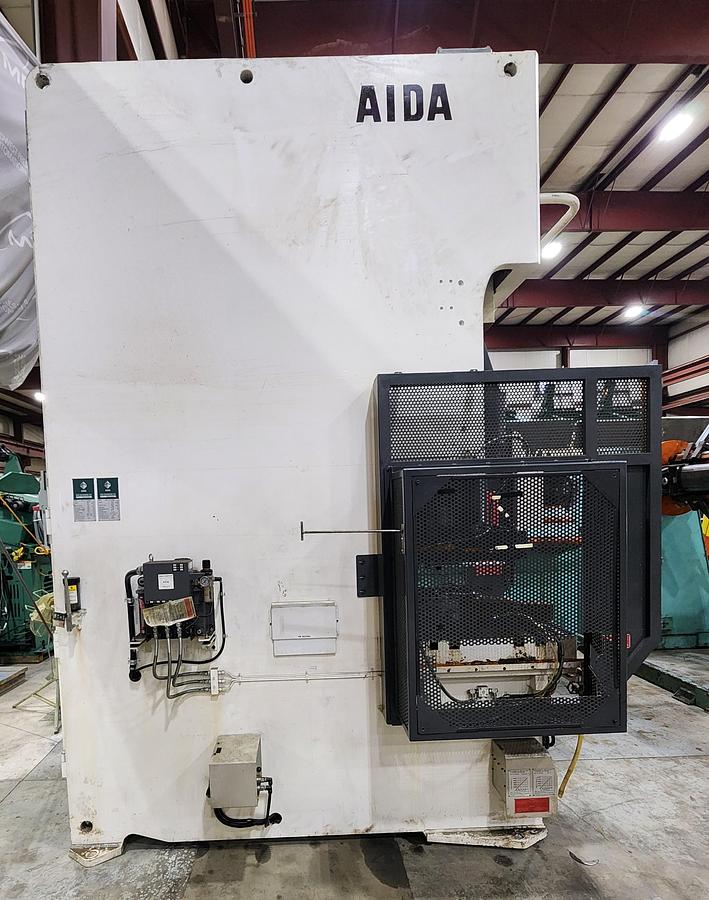

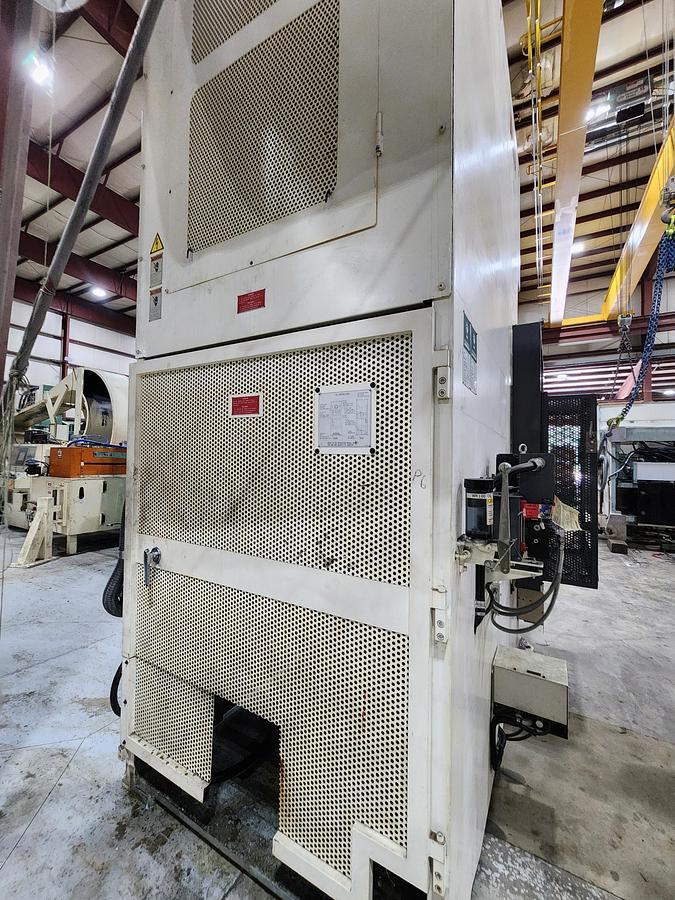

165 TON Aida NC1-1500 (HD) SERVO PRESS

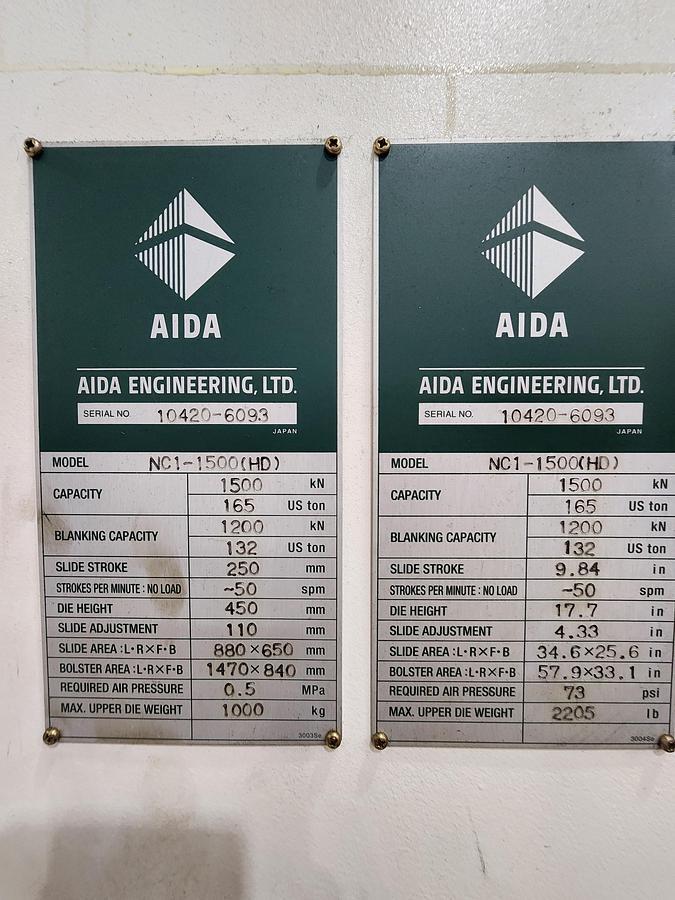

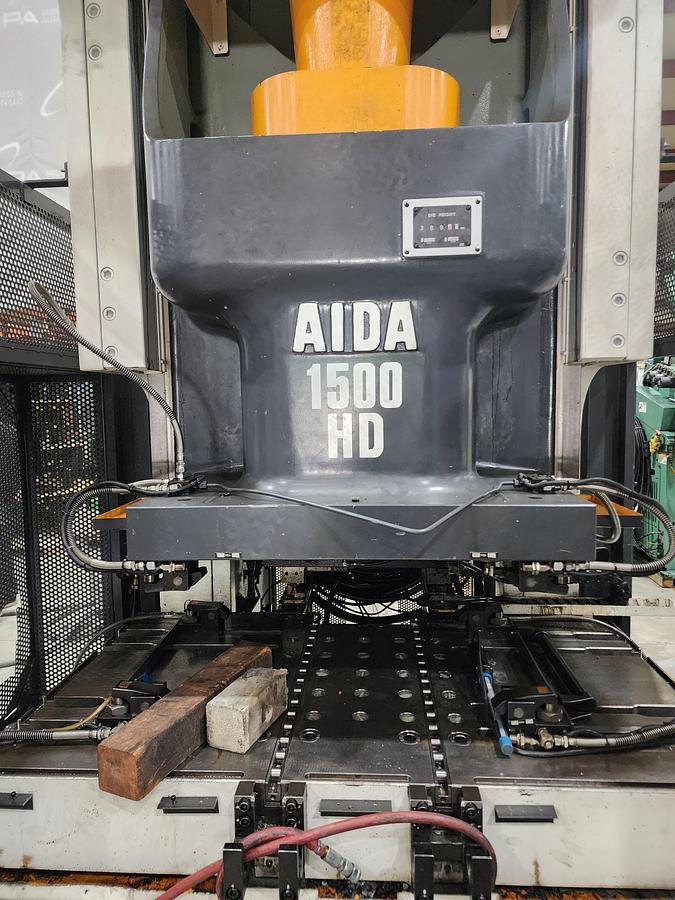

The 165 Ton Aida NC1-1500 (HD) Servo Press is a reliable piece of used equipment designed to handle demanding industrial tasks. This model offers a substantial capacity of 165 tons, making it suitable for high-performance operations. It features a stroke length of 9.84 inches with the capability of 50 strokes per minute at full stroke, ensuring efficient and swift operations. The die height stands at 17.7 inches with a slide adjustment of 4.33 inches, providing versatility in handling various materials and operations. The slide area measures 36.6 inches left to right and 25.6 inches front to back, while the expansive bed area is 57.9 inches by 33.1 inches, accommodating sizable workpieces. This press is equipped to manage a maximum upper die weight of 2205 pounds. Enhancements such as hydraulic quick die change and operating at an air pressure of 73 PSI contribute to streamlined processes and improved productivity. This Aida NC1-1500 (HD) model is ideal for industries seeking a combination of power, efficiency, and adaptability in a servo press.
