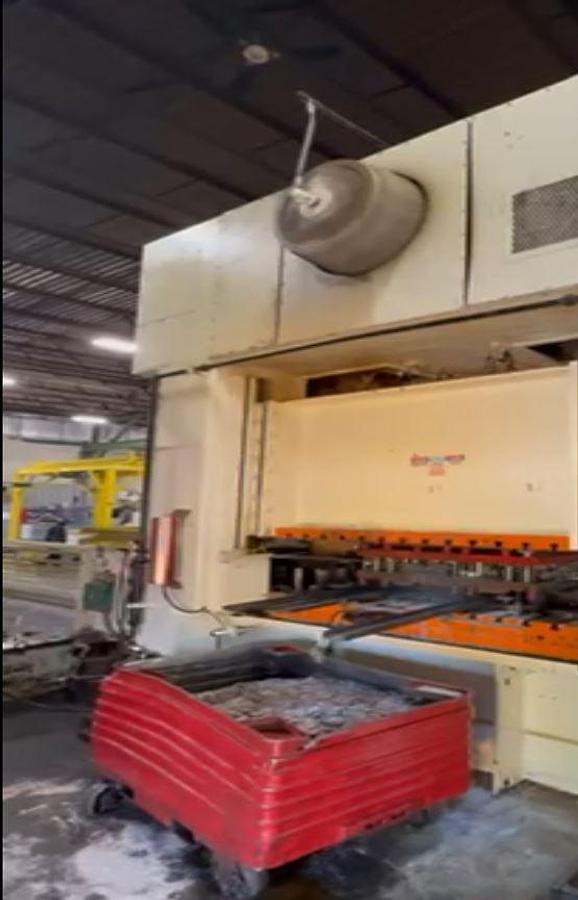

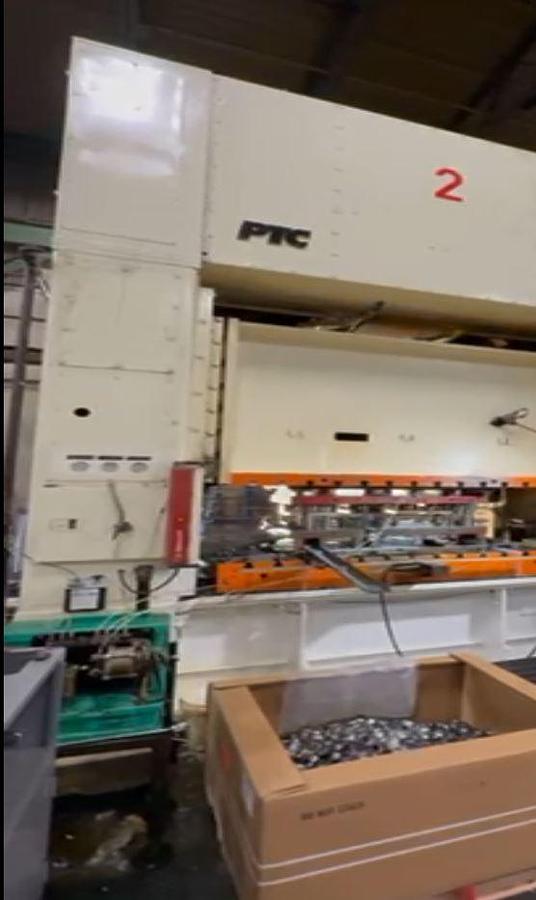

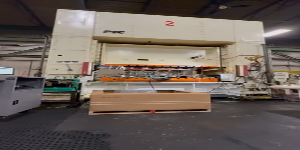

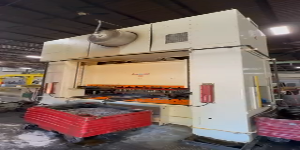

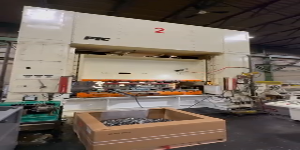

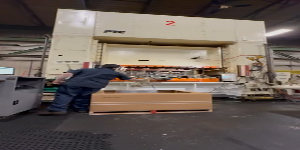

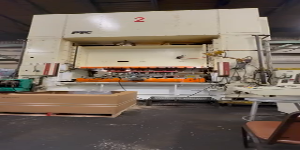

400 TON PTC STRAIGHT SIDE MECHANICAL PRESS
400 TON PTC STRAIGHT SIDE MECHANICAL PRESS
Contact us for price
Description
This 400-ton PTC Straight Side Mechanical Press, model BL2-400-84 X 48, offers robust performance with precision engineering. Manufactured in 2003, it features a capacity of 400 tons and a stroke length of 8 inches. The press supports a variable strokes per minute range from 10 to 100, making it suitable for a variety of applications. The slide area measures 85 inches left to right and 48.5 inches front to back, providing ample workspace. With a die height from shut height dimension under load of 23.157 inches, and an under daylight of 17.136 inches, it accommodates various die sizes. The press includes generous press frame windows at 35.75 inches wide by 35.5 inches high for both entrance and exit, providing the necessary access and throughput for large materials. The bolster plate is substantial, measuring 84 inches left to right, 48 inches front to back, and 5.875 inches thick, complete with 13 T-slots for secure die mounting. Additional features include a distance between uprights of 93.5 inches and a steel passline height through the die of 10.5 inches. It operates without a slide knockout and allows slide adjustment up to 6 inches at a speed of 4.03 inches per minute. The feed direction is configured right to left, fitting various installation layouts efficiently. Ideal for industrial applications, this press combines durability with flexibility.
Specifications
Manufacturer | PTC |
Model | BL2-400-84 X 48 |
Year | 2003 |
Condition | Used |
Serial Number | 93-004-L1 |
Stock Number | 5881 |
MODEL NUMBER | BL2-400-84 X 48 |
SERIAL NUMBER | 93-004-L1 |
MANUFACTURE YEAR | 2003 |
CAPACITY | 400 TONS |
SLIDE AREA | 85" LR x 48.5" FB |
LENGTH OF STROKE | 8" |
STROKES PER MINUTE | 10-100 |
SLIDE ADJUSTMENT | 6" |
SINGLE STROKE RATE INTERMITTENT TRIP RATE 10 PER MIN. | @ 50 SPM |
SLIDE ADJUSTMENT SPEED | 4.03" PER MIN. |
PRESS FRAME WINDOWS (ENTRANCE) | 35.75" WIDE x 35.5" HIGH |
PRESS FRAME WINDOWS (EXIT) | 35.75" WIDE x 35.5" HIGH |
DISTANCE BETWEEN UPRIGHTS | 93.5" |
SLIDE KNOCKOUT | NONE |
DIE HEIGHT, SDAU | 23.157" |
DIE HEIGHT, SDAD | 17.136" |
STEEL PASSLINE THROUGH DIE | 10.5" |
BOLSTER PLATE DIMENSIONS | 84" LR x 48" FB x 5.875" THICK |
DIE MOUNTING, SLIDE | (13) 1" T-SLOTS FRONT TO BACK |
DIE MOUNTING, BOLSTER PLATE | (13) 1" T-SLOTS FRONT TO BACK |
FEED DIRECTION | RIGHT TO LEFT |
