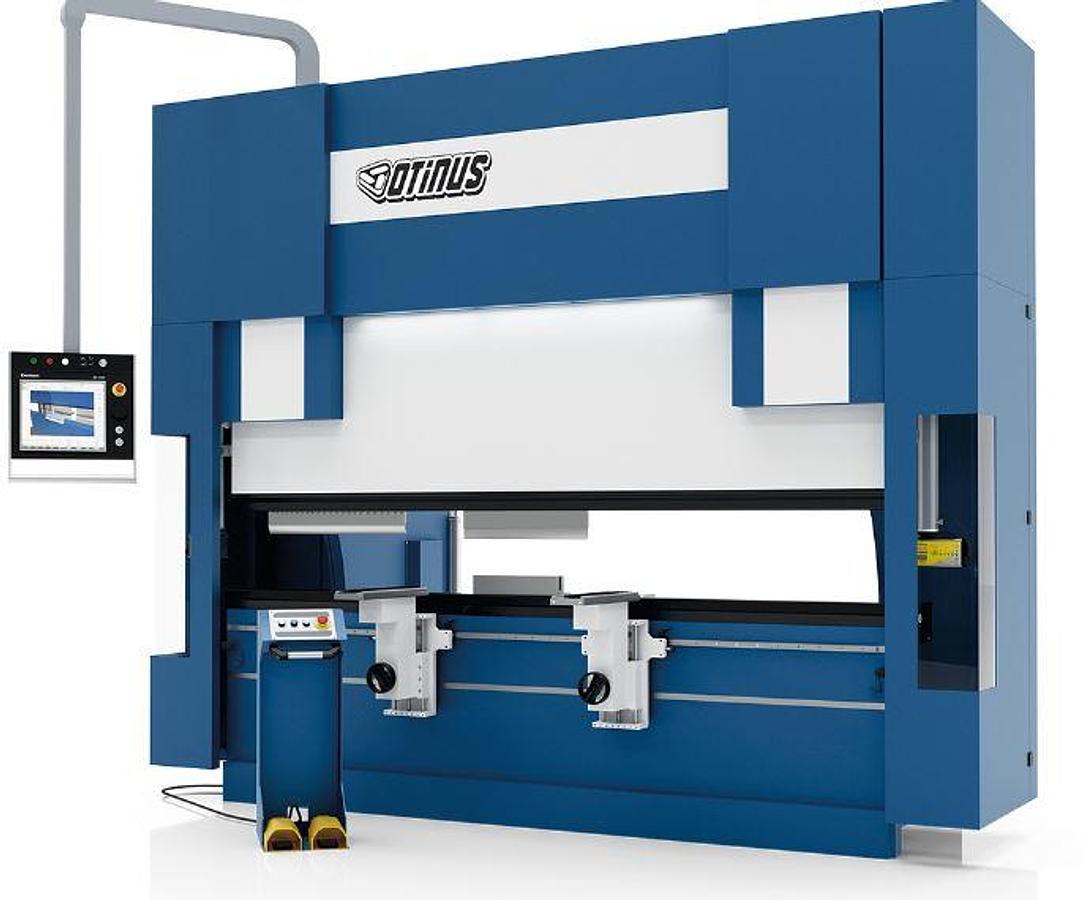

OTINUS HYDRAULIC PRESS BRAKE PBO-3717-CNC DELEM DA-66T (1)

The OTINUS Hydraulic Press Brake PBO-3717-CNC features the advanced Delem DA-66T controller, offering automatic control over eight axes to enhance bending efficiency. This system allows storage for up to 500 programs, each with a maximum of 25 steps and 99 repetitions. The device supports both 2D and 3D programming, viewable on a 17" TFT touch screen, and includes crowning control directly managed through the controller. The press brake has an impressive bending capacity of 1750 kN and a maximum working length of 145 inches. Its robust design includes a 16-inch throat depth and a maximum ram stroke of 12 inches, providing a spacious 18-inch daylight. The machine is equipped with a USB port for device connectivity and has provision for a bending angle sensor for precise operations. This model further guarantees user safety and precision with built-in controls and sensors to prevent collisions along the axes. With dimensions of 18 feet in length, 8 feet in width, and 10 feet in height, it is a substantial machine weighing 23,152 pounds. The nominal motor power is 15.0 kW, supporting a return speed of 180 mm/s, making it a reliable choice for demanding industrial applications.
