OTINUS PRO: GUILLOTINE SHEAR 1/4" x 162" CYBTOUCH-8W

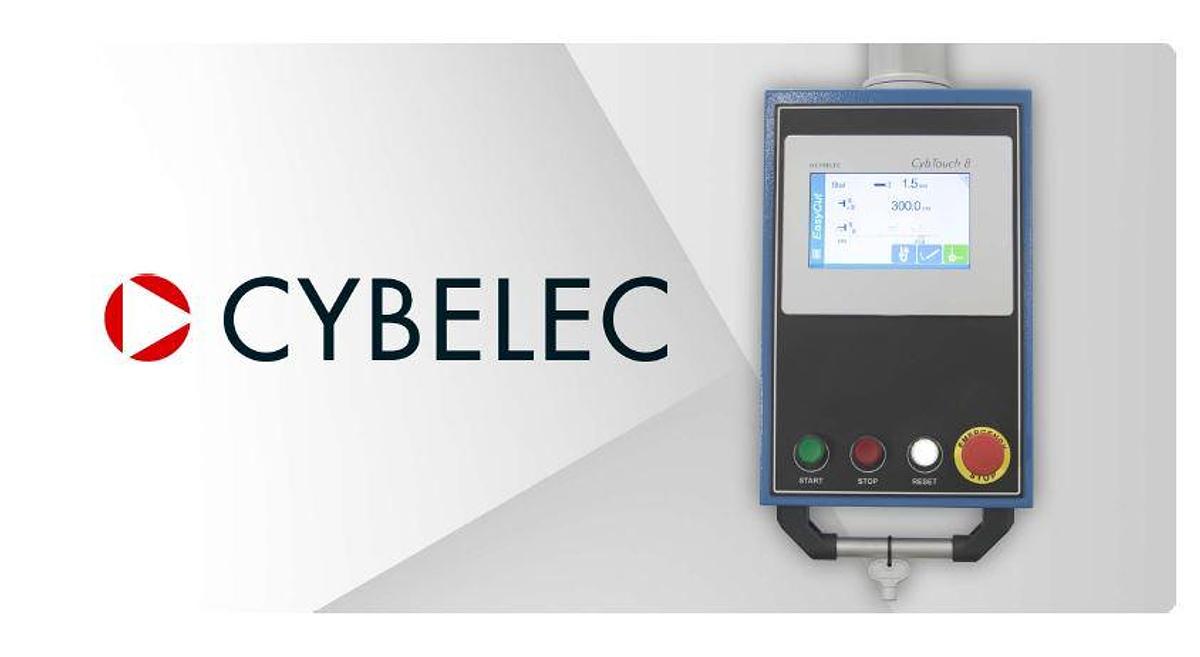

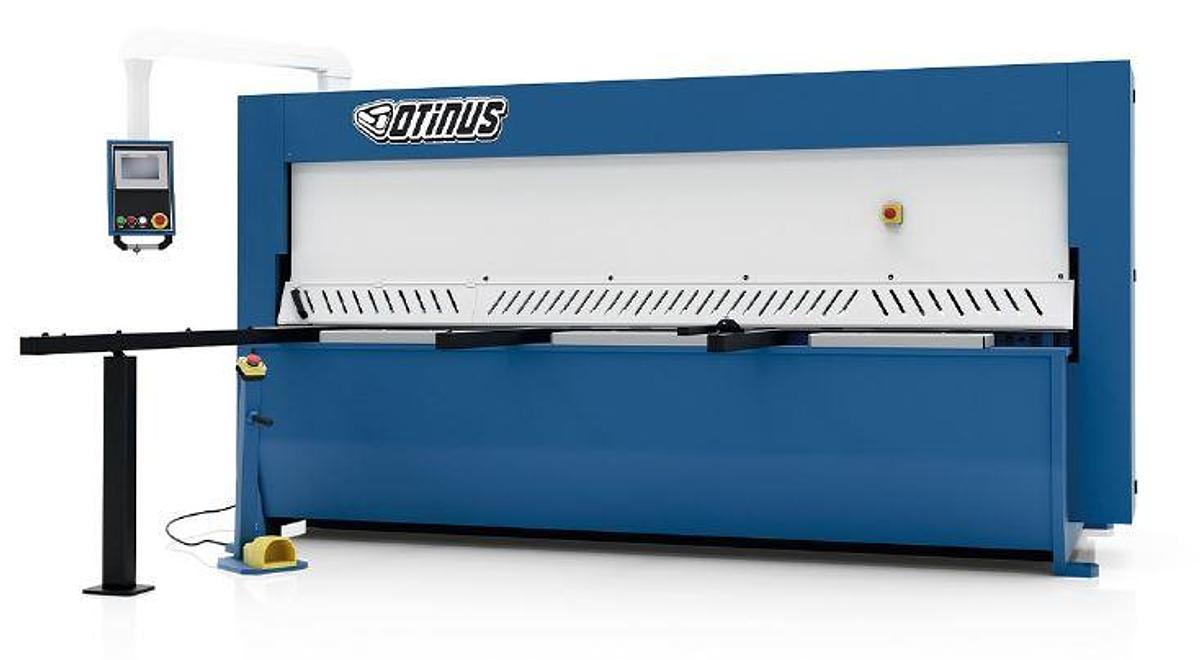

The OTINUS PRO SMO-4106-PRO Guillotine Shear is a high-performance machine designed for precision cutting needs. Equipped with the CybTouch 8w controller, this shear offers automatic adjustments based on material specifications, including blade gap and back gauge corrections. The machine features a 162-inch maximum cutting length for carbon steel, handling thicknesses of up to 6 mm for materials with a strength of less than 450 N/mm² and 4 mm for those less than 750 N/mm². With a rake angle of 1.2 degrees and robust motor power of 11.0 kW, you can expect efficient and precise operations. This shear can perform up to 12 cuts per minute with its 23 hold-down pieces, ensuring secure material placement during operation. Its back gauge offers a substantial range of 30 inches, powered by a 0.55 kW motor. Additional features include a sheet support system with a parking position, system pressure management, and the "Return to Sender" function for versatile gauge management. The device's large and clear display, coupled with its intuitive interface, ensures ease of programming and operation for cutting sequences and parts. Weighing approximately 20,727 lbs, the OTINUS PRO maintains a sturdy build while providing large capacity oil tank storage of 42 gallons. Its dimensions provide a stable footprint with a length of 169 inches and width extending across key operational points from 17 to 69 inches, supporting demanding industrial environments. Ideal for workshops requiring reliable and sophisticated shear capabilities, this machine's user-friendly design allows for quick proficiency in utilizing its extensive functions.
